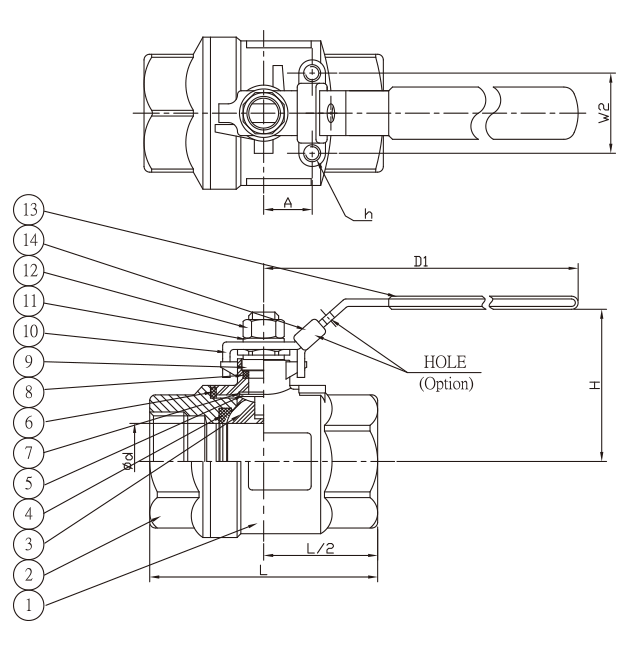

2PC STAINLESS STEEL 316 BALL VALVE
V-2N2000WOG
2PCS STAINLESS STEEL 316BALL VALVE
| NO | PART NAME | MATRIAL | QTY | |
| MATRIAL | MATRIAL | |||
| 1 | BODY | ASTM A351 CF8M | ASTM A216 WCB | 1 |
| 2 | CAP | ASTM A351 CF8M | ASTM A216 WCB | 1 |
| 3 | BALL | ASTM A351 CF8M | ASTM A351 CF8M | 1 |
| 4 | SEAT | TFM1600 | PTFE | 2 |
| 5 | STEM | SS316 | SS316 | 1 |
| 6 | GASKET | PTFE | PTFE | 1 |
| 7 | YHRUST WASHER | PTFE | PTFE | 1 |
| 8 | STEM PACKING | PTFE | PTFE | 1 |
| 9 | GLAND | SS304 | SS304 | 1 |
| 10 | HANDLE | SS304 | SS304 | 1 |
| 11 | SPRING WASHER | SS304 | SS304 | 1 |
| 12 | HANDLE NUT | SS304 | SS304 | 1 |
| 13 | HANDLE SLEEVE | VINYL GRIP | VINYL GRIP | 1 |
| 14 | LOCKING PLATE | SS304 | SS304 | 1 |
| SIZE | d | L | H | D1 | h | W2 | A |
| 1 / 4" | 11.0 | 59.5 | 53.5 | 103 | 10-24UNC | 28.5 | 12.5 |
| 3 / 8" | 12.5 | 59.5 | 56.4 | 103 | 10-24UNC | 28.5 | 12.5 |
| 1 / 2" | 15.0 | 67 | 55.0 | 103 | 10-24UNC | 28.5 | 12.5 |
| 3 / 4" | 20.0 | 76.7 | 66.0 | 127 | 10-24UNC | 28.5 | 12.5 |
| 1" | 25.0 | 95.5 | 71.0 | 127 | 1/4" -20UNC | 35 | 23 |
| 1 1/4" | 32.0 | 105.5 | 89.0 | 153 | 1/4" -20UNC | 37.5 | 25.4 |
| 1 1/2" | 40.0 | 118.0 | 92.0 | 153 | 1/4" -20UNC | 37.5 | 25.4 |
| 2" | 50.8 | 136 | 107 | 193 | 1/4" -20UNC | 38 | 25.4 |
