2PC STAINLESS STEEL 316 BALL VALVE
V-2B 1000WOG
2PCS STAINLESS STEEL 316BALL VALVE

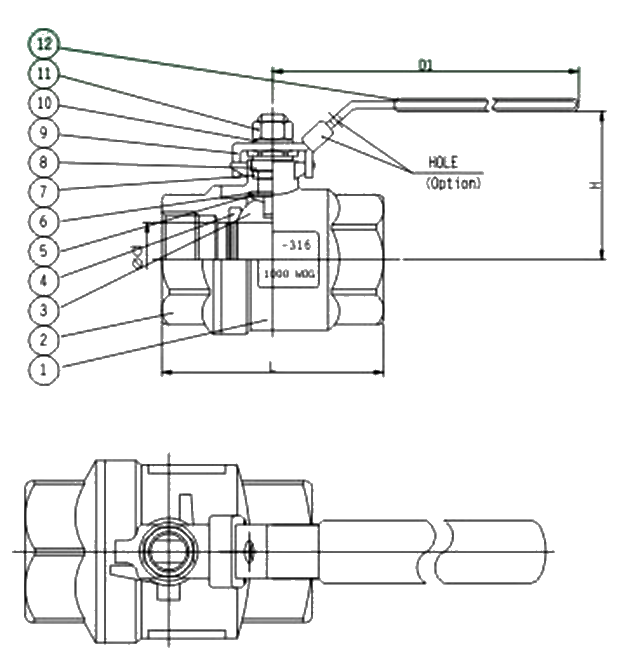

| NO | PART NAME | MATRIAL | QTY |
| 1 | BODY | ASTM A351 Gr.CF8M | 1 |
| 2 | CAP | ASTM A351 Gr.CF8M | 1 |
| 3 | BALL | ASTM A351 Gr.CF8M | 1 |
| 4 | STEM | ASTM A276 Gr.316 | 1 |
| 5 | SEAT | PTFE | 2 |
| 6 | GASKET | PTFE | 1 |
| 7 | PACKING | PTFE | 1 |
| 8 | GLAND | S.S.304 | 1 |
| 9 | HANDLE | S.S.304 | 1 |
| 10 | SPPING WASHER | S.S.304 | 1 |
| 11 | HANDLE NUT | S.S.304 | 1 |
| 12 | HANDLE SLEEVE | VINYL GRIP | 1 |
| SIZE | Ød | L | H | D1 |
| 1 / 4" | 11.0 | 58.0 | 57.20 | 105 |
| 3 / 8" | 12.5 | 58.0 | 57.20 | 105 |
| 1 / 2" | 15.0 | 60.0 | 59.10 | 105 |
| 3 / 4" | 20.0 | 70.0 | 62.55 | 105 |
| 1" | 25.0 | 82.0 | 70.70 | 128 |
| 1 1/4" | 32.0 | 96.0 | 76.20 | 128 |
| 1 1/2" | 38.0 | 112.0 | 89.10 | 154 |
| 2" | 50.0 | 126.0 | 98.15 | 154 |
| 2 1/2" | 65.0 | 155.0 | 110.6 | 194 |
| 3" | 80.0 | 170.0 | 124.0 | 276 |
