3PC STAINLESS STEEL 316 BALL VALVE
V-3A S/W 1000WOG
3PCS STAINLESS STEEL 316BALL VALVE

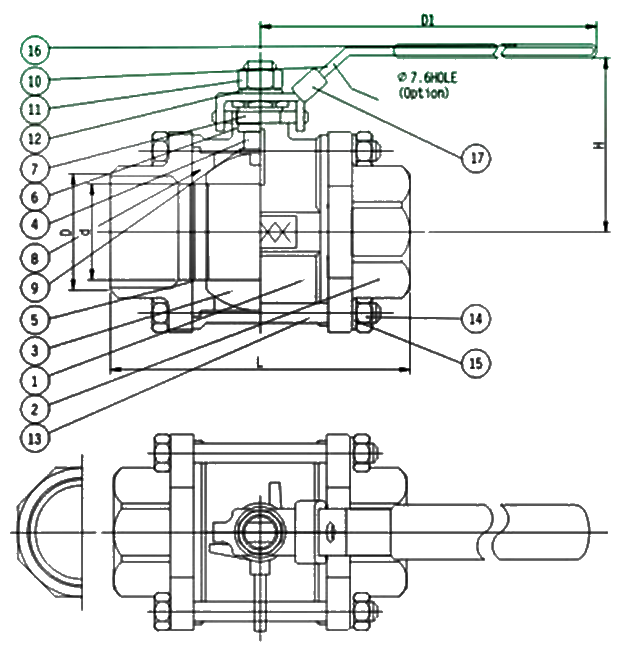

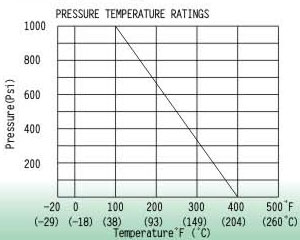

| NO | PART NAME | MATRIAL | QTY | |
| STAINLESS STEEL | CARBON STEEL | |||
| 1 | BODY | ASTM A351 Gr.CF8M | ASTM A216 WCB | 1 |
| 2 | CAP | ASTM A351 Gr.CF8M | ASTM A216 WCB | 2 |
| 3 | BALL | ASTM A351 Gr.CF8M | ASTM A351 Gr.CF8M | 1 |
| 4 | STEM | ASTM A276 Gr.316 | ASTM A276 Gr.304 | 1 |
| 5 | SEAT | PTFE | PTFE | 2 |
| 6 | PACKING | PTFE | PTFE | 1 |
| 7 | GLAND | S.S.304 | S.S.304 | 1 |
| 8 | END SEALS | PTFE | PTFE | 2 |
| 9 | THRUST WASHER | PTFE | PTFE | 1 |
| 10 | HANDLE | S.S.304 | S.S.304 | 1 |
| 11 | HANDLE NUT | S.S.304 | S.S.304 | 1 |
| 12 | SPRING WASHER | S.S.304 | S.S.304 | 1 |
| 13 | BOLTS | ASTM A193 Gr.B8 | ASTM A193 Gr.B8 | 1 |
| 14 | BOLT NUT | ASTM A194 Gr.B | ASTM A194 Gr.B | 4 |
| 15 | NOLT WASHER | S.S.304 | S.S.304 | 4 |
| 16 | HANDLE SLEEVE | VINYL GRIP | VINYL GRIP | 4 |
| 17 | LOCKINGPLATE | S.S.304 | S.S.304 | 1 |
| SIZE | Ød | L | H | D1 | D | CV factor |
TORQVE kgf-Cm |
| 1 / 4" | 11.0 | 60.5 | 57.20 | 105 | 14.1 | 6.0 | 30.6 |
| 3 / 8" | 12.5 | 60.5 | 57.20 | 105 | 18.0 | 12.0 | 30.6 |
| 1 / 2" | 15.0 | 65.5 | 59.10 | 105 | 22.0 | 19.0 | 45.9 |
| 3 / 4" | 20.0 | 77.6 | 62.55 | 105 | 27.3 | 37.0 | 83.3 |
| 1" | 25.0 | 83.5 | 70.70 | 128 | 34.0 | 64.0 | 107.8 |
| 1 1/4" | 32.0 | 102.5 | 76.20 | 128 | 42.8 | 103.0 | 147.0 |
| 1 1/2" | 38.0 | 117.6 | 89.10 | 154 | 48.9 | 143.0 | 205.8 |
| 2" | 50.0 | 130.2 | 98.15 | 194 | 61.4 | 360.0 | 255.0 |
| 2 1/2" | 65.0 | 158.6 | 110.6 | 194 | 73.8 | 440.0 | 346.8 |
| 3" | 80.0 | 177.8 | 124.0 | 276 | 90.0 | 520.0 | 561.0 |
| 4" | 100.0 | 225.2 | 168.5 | 335 | 115.5 | 820.0 | 969.0 |
