2PC STAINLESS STEEL 316 BALL VALVE
V-2AM 1000WOG
2PCS STAINLESS STEEL 316 BALL VALVE

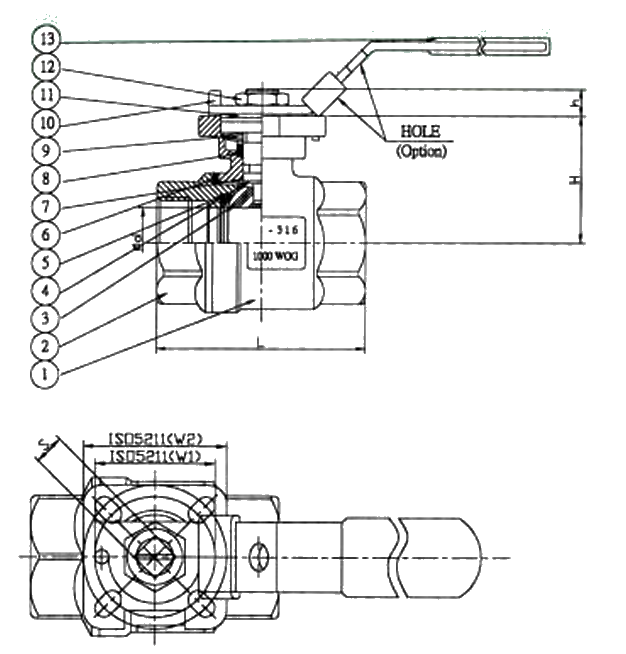

| NO | PART NAME | MATRIAL | QTY |
|---|---|---|---|
| 1 | BODY | ASTM A351 Gr.CF8M | 1 |
| 2 | CAP | ASTM A351 Gr.CF8M | 1 |
| 3 | BALL | ASTM A351 Gr.CF8M | 1 |
| 4 | STEM | ASTM A276 Gr.316 | 1 |
| 5 | SEAT | PTFE | 2 |
| 6 | GASKET | PTFE | 1 |
| 7 | THRUST WASHER | PTFE | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | BELLEVILE WASHER |
S.S.410 | 2 |
| 10 | HANDLE | S.S.304 | 1 |
| 11 | SPPING WASHER | S.S.304 | 1 |
| 12 | HANDLE NUT | S.S.304 | 1 |
| 13 | HANDLE SLEEVE | VINYL GRIP | 1 |
| SIZE | Ød | L | H | h | S | W1 | W2 | ISO-5211 |
| 3 / 8" | 12.5 | 58.0 | 38 | 7 | 9 | 36 | 42 | F03/F04 |
| 1 / 2" | 15.0 | 60.0 | 38 | 7 | 9 | 36 | 42 | F03/F04 |
| 3 / 4" | 20.0 | 70.0 | 42.4 | 9 | 9 | 36 | 42 | F03/F04 |
| 1" | 25.0 | 82.0 | 48.5 | 12 | 11 | 42 | 50 | F04/F05 |
| 1 1/4" | 32.0 | 96.0 | 54 | 12 | 11 | 42 | 50 | F04/F05 |
| 1 1/2" | 38.0 | 112.0 | 66 | 16 | 14 | 50 | 70 | F05/F07 |
| 2" | 50.0 | 126.0 | 74 | 16 | 14 | 50 | 70 | F05/F07 |
| 2 1/2" | 65.0 | 155.0 | 100.5 | 19 | 17 | 70 | 102 | F07/F10 |
| 3" | 80.0 | 170.0 | 109.8 | 19 | 17 | 70 | 102 | F07/F10 |
| 4" | 100.0 | 216.5 | 141 | 24 | 17 | 70 | 102 | F07/F10 |
