1 PC STAINLESS STEEL 316 BALL VALVE
R-1B 1000WOG
1 PCS STAINLESS STEEL 316 BALL VALVE
| NO | PART NAME | MATRIAL | QTY |
| 1 | BODY | ASTM A351 Gr.CF8M | 1 |
| 2 | BALL | ASTM A351 Gr.CF8M | 1 |
| 3 | STEM | ASTM A276 Gr.316 | 1 |
| 4 | SEAT | PTFE | 2 |
| 5 | THRUST WASHER | PTFE | 1 |
| 6 | GLAND PACKING | PTFE | 1 |
| 7 | WASHER | S.S.304 | 2 |
| 8 | SPRING WASHER | S.S.304 | 1 |
| 9 | STEM NUT | S.S.304 | 1 |
| 10 | HANDLE | S.S.304 | 1 |
| 11 | HANDLE SLEEVE | VINYL GRIP | 1 |
| 12 | GASKET | PTFE | 1 |

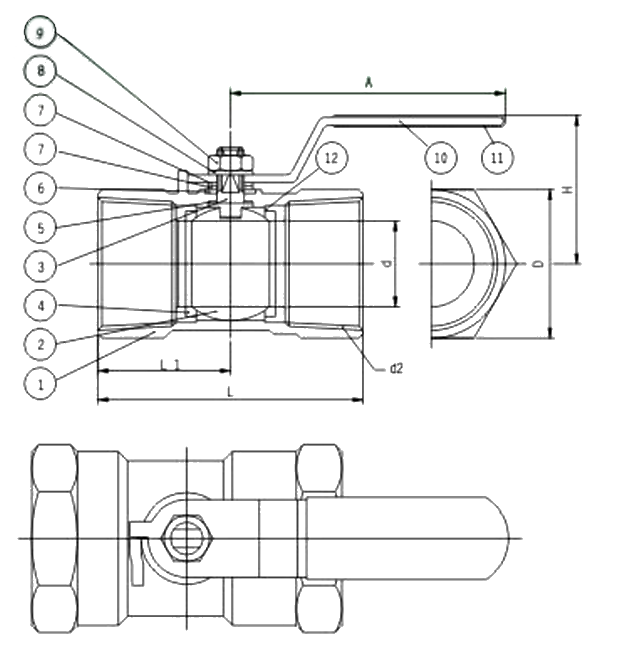

| SIZE | Ød | D | A | L | D2 | H | L1 |
| 1 / 4" | 4.6 | 17.0 | 63 | 39.0 | RC1 / 4" | 35 | 18.7 |
| 3 / 8" | 6.8 | 21.0 | 73 | 44.0 | RC3 / 8" | 37 | 20.90 |
| 1 / 2" | 9.2 | 25.0 | 88 | 56.5 | RC1 / 2" | 43 | 27.25 |
| 3 / 4" | 12.5 | 32.0 | 88 | 59.0 | RC3 / 4" | 46 | 30.45 |
| 1" | 16.0 | 38.0 | 121 | 71.0 | RC 1" | 50 | 36.40 |
| 1 1/4" | 20.0 | 49.0 | 121 | 78.0 | RC1 1/4" | 54 | 38.85 |
| 1 1/2" | 24.5 | 53.0 | 132 | 83.0 | RC1 1/2" | 65 | 42.20 |
| 2" | 32.0 | 65.0 | 132 | 100.0 | RC 2" | 72 | 51.00 |
